Tumbling Machine Guide
Types, working principles, process ranges, abrasive media, applications, advantages, limitations, and comparison with vibratory finishing.
Mass finishing equipment selection
Tumbling and vibratory finishing decisions, built for engineers.
Practical process ranges, media guidance, comparison tables, and calculators for deburring, edge rounding, cleaning, burnishing, and surface smoothing.

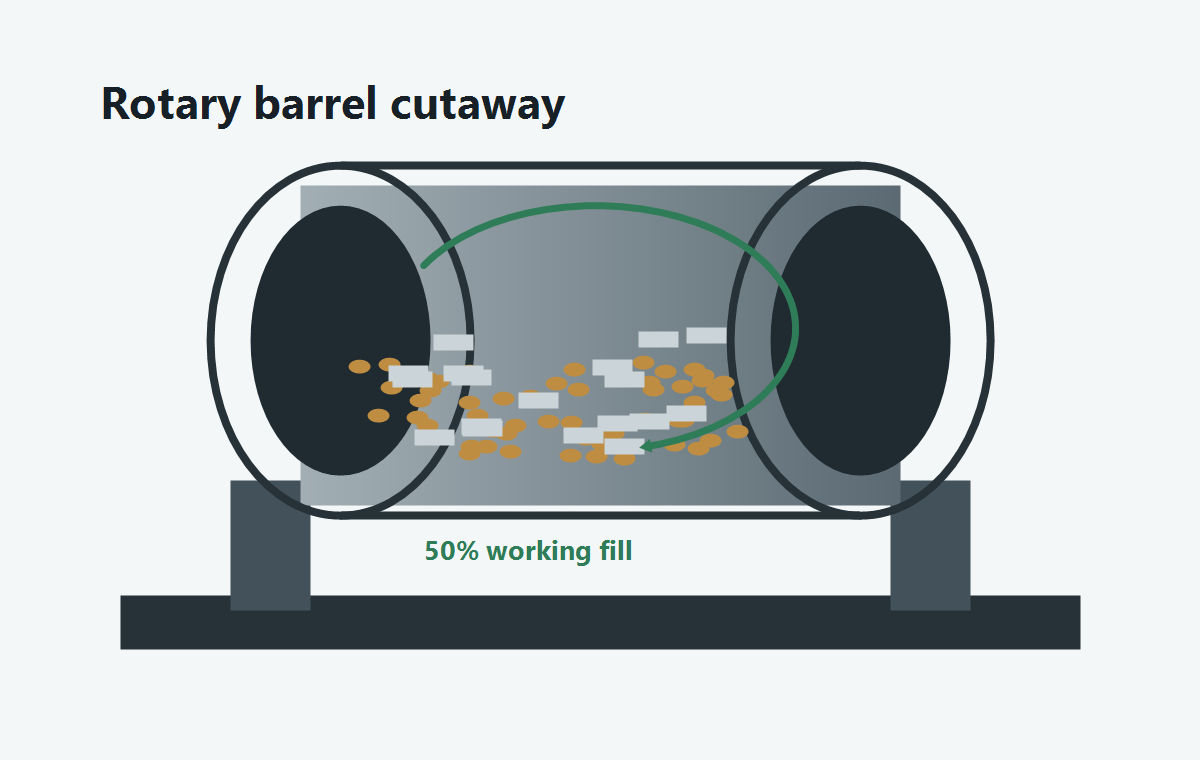

40-60%Typical barrel working fill
3:1Common media-to-parts start
20-38RPM range for many barrels
30-180Minutes for many deburr cycles
Quick engineering tool
Estimate barrel capacity before quoting equipment.
Use this for early sizing only. Final machine selection still needs part trials, media checks, and burr inspection.
Resource map
Start with the process decision, then control the variables.
The site is organized as a cluster around tumbling, vibratory finishing, media control, and surface quality validation.
Process Comparison

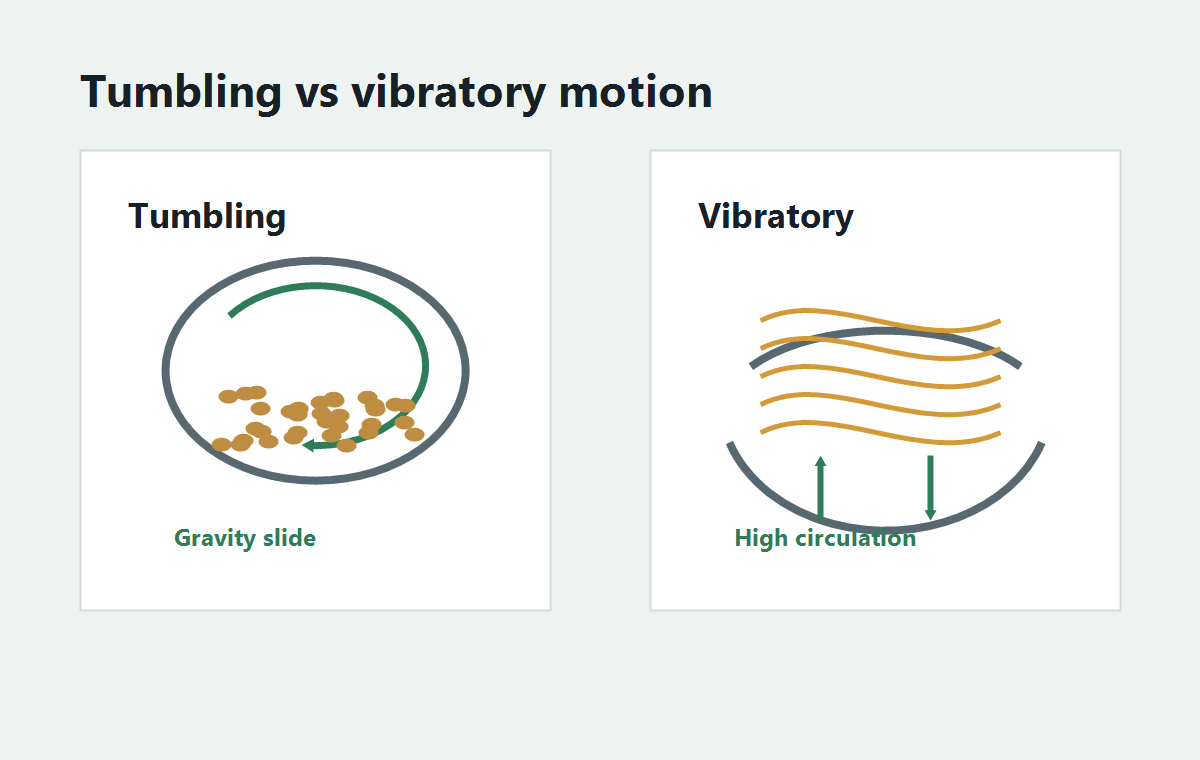

Choose between conventional barrel tumbling, centrifugal barrel finishing, and vibratory finishing using process constraints.
Quality Control

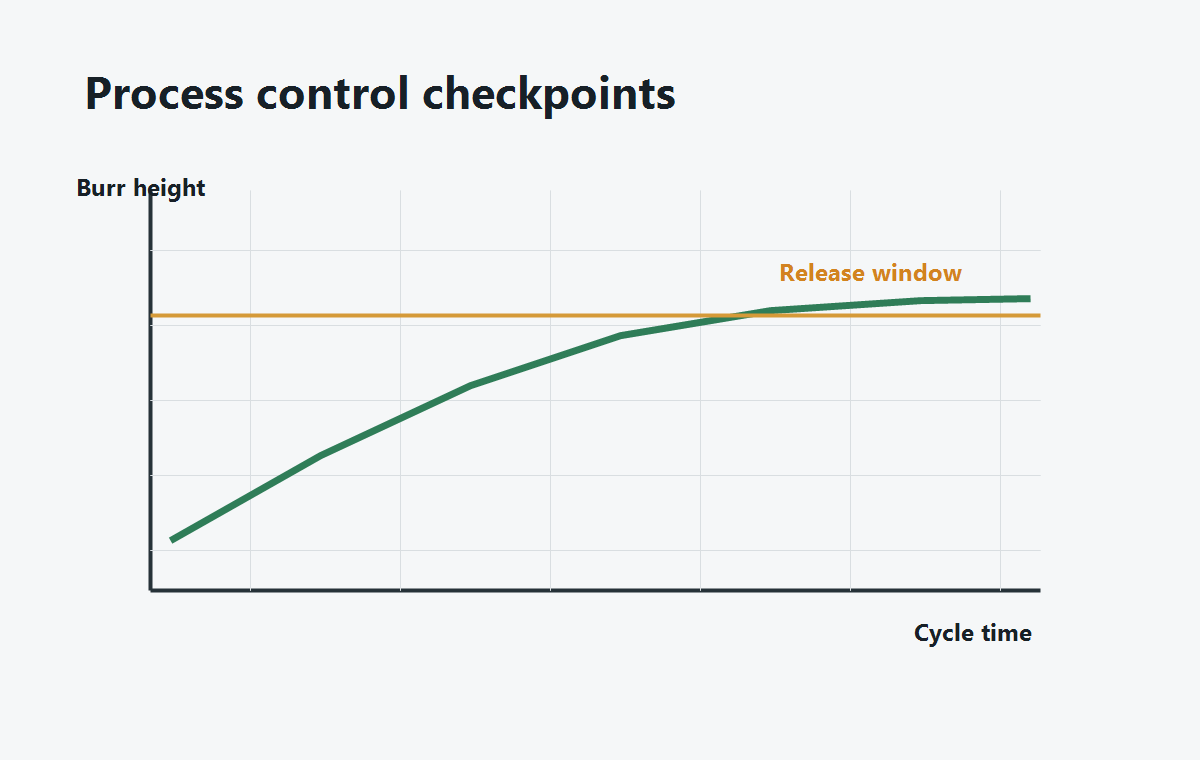

Connect finishing recipes to burr height, edge radius, Ra/Rz, media wear, replenishment rate, and release inspection.
Selection logic
Typical process fit by production requirement.
These are starting points, not universal rules. Geometry, burr type, part material, and damage tolerance can change the answer.
| Requirement | Best starting process | Why |
|---|---|---|
| Lowest capital cost for robust parts | Conventional barrel tumbling | Simple mechanics, low operating complexity, long unattended cycles. |
| High throughput and automated separation | Vibratory finishing | Better flow, easier unload systems, and stronger production-cell integration. |
| Small parts with heavy burrs or edge-radius targets | Centrifugal barrel finishing | High-energy planetary motion can reduce cycle time significantly. |
| Bright burnishing with low metal removal | Steel media tumbling or vibratory burnishing | Hardened steel media improves luster through compression and rubbing action. |
Process request template
Capture the facts that decide the finishing route.
For a real process review, collect material, hardness, burr type, part size, holes or slots, target edge radius, surface roughness, cosmetic limits, daily volume, and available cycle time.
